Proline Prowirl F 200 Vortex flowmeter


X

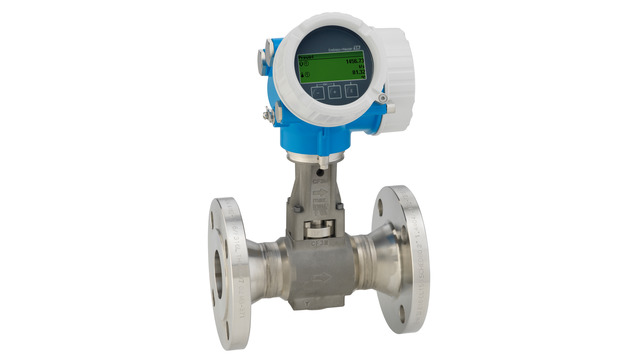

  • Proline Prowirl F 200Vortex flowmeter©Endress+Hauser
  • Prowirl F 200 with mounted pressure measuring unit for gases and liquids ©Endress+Hauser

    Prowirl F 200 with mounted pressure measuring unit for gases and liquids (can be rotated through 360 °)

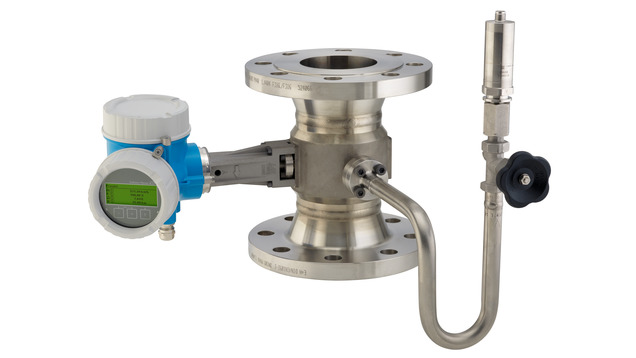

  • Prowirl F 200 with mounted pressure measuring unit for steam©Endress+Hauser

    Prowirl F 200 with mounted pressure measuring unit for steam (can be rotated through 360 °)

  • The Vortex Flow Measuring Principle

  • Steam Quality Measurement with Prowirl F 200 – For Maximum Operational Safety, Energy and Cost Efficiency

  • HistoROM data storage concept

  • This film shows that Prowirl 200 is the most robust vortex flowmeter worldwide even under extreme process conditions.

  • Detection of wet steam Measurement of the dryness fraction of steam.

Prowirl F is the multivariable flowmeter with inline wet steam measurement. While dedicated to steam applications, it offers excellent measuring accuracy for gases and liquids in ancillary processes. With genuine loop-powered technology, Prowirl F 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology ensures process safety at all times.

Преимущества

  • Easy energy management – integrated temperature and pressure measurement for steam and gases

  • Space-saving engineering – inlet run compensation

  • Same accuracy down to Re 10 000 – most linear Vortex meter body

  • Long-term stability – robust drift-free capacitive sensor

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology

Область применения

  • Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)

  • Suitable for a wide range of applications; optimized for steam applications.

Device properties

  • Wet steam capabilities for DN 25 to 300 (1 to 12")

  • Flexible positioning of pressure cell

  • Industrial siphon design for pressure measurement

  • Display module with data transfer function

  • Robust dual-compartment housing

  • Plant safety: worldwide approvals (SIL, Haz. area)
